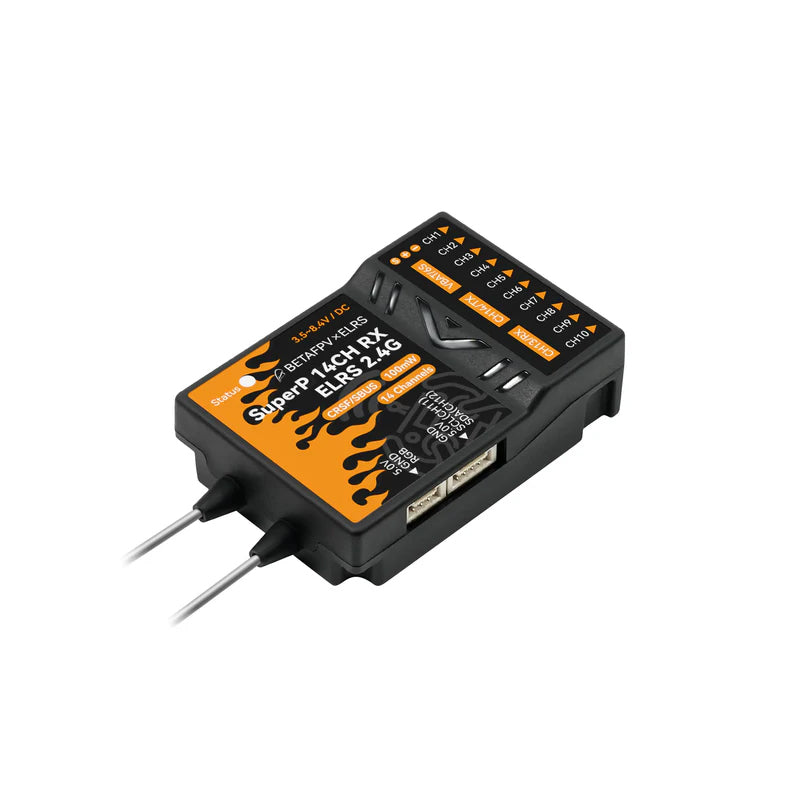

ELRS 2.4 GHz SuperP 14CH Diversity Receiver

Specification

• Item: BETAFPV SuperP 14CH Diversity Receiver | ELRS 2.4GHz/915MHz/868MHz
• MCU: ESP32 Pico D4 + 2*SX1280/SX1281 + 2*AT2401C (2.4GHz)
• MCU: ESP32 Pico D4 + 2*SX1276（915MHz/868MHz）
• Telemetry Power: 20dBm/100mW (2.4GHz), 17dBm/50mW (915MHz/868MHz)
• Frequency Bands: 2.4GHz ISM
• Rated Current: 180mA@5V (2.4GHz)

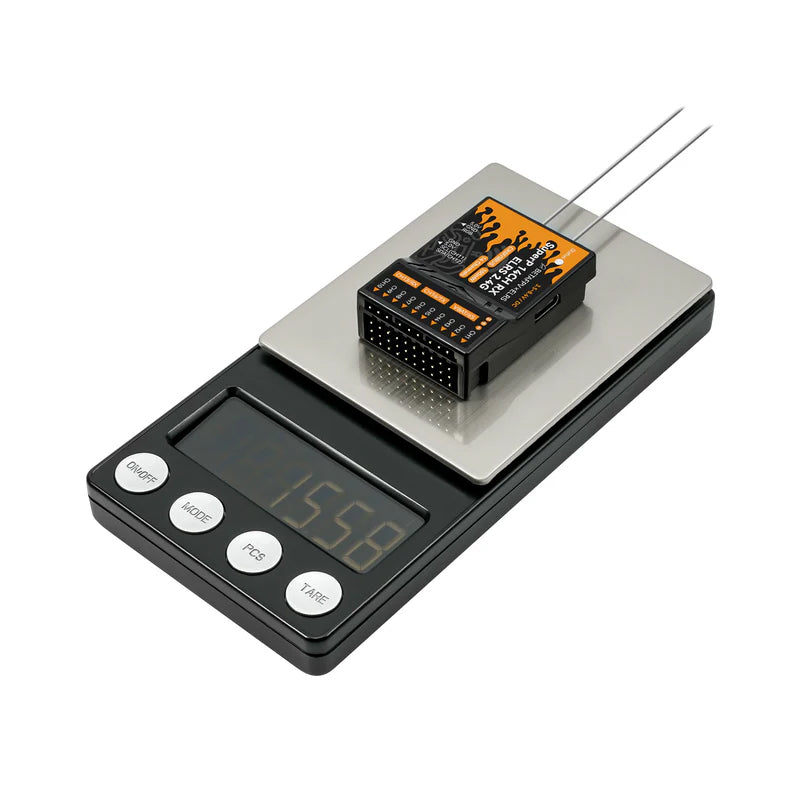

• Weight: 15.5g (2.4GHz)
• Default Firmware Version: ExpressLRS V3.3.0
• Serial Output Protocol: PWM, CRSF or SBUS
• Antenna: 2* IPEX MHF 1 Antenna

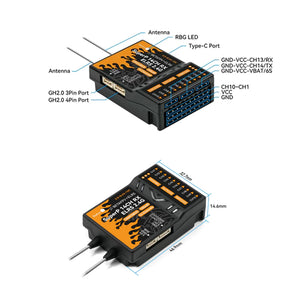

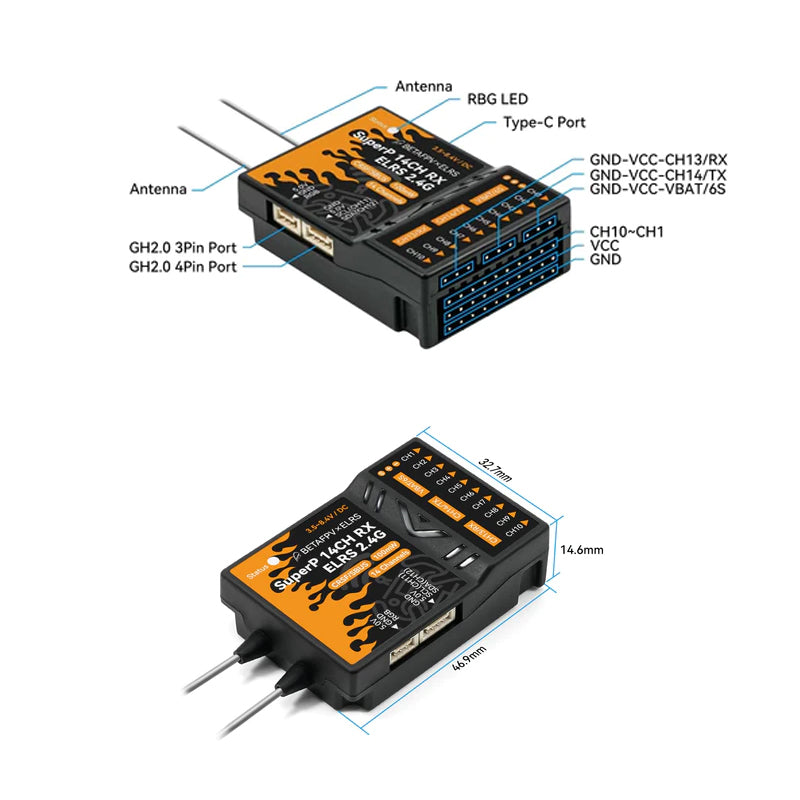

• Size: 46.9mm*32.7mm*14.6mm
• Voltage Detector Range: 1~6S
• Input Voltage: 3.5V~8.4V DC
• PWM Channel: 14 Channels
• Adapted RC Model Type: Multirotors, Fixed-wing aircraft, Helicopters, RC Cars, RC Boats and etc.

Package

• 1 x SuperP 14CH Diversity Receiver

• 2 x 150mm Monopole Antenna (2.4GHz)
• 1 x GH2.0 3-Pin Cable

• 1 x GH2.0 4-Pin Cable

• 1 x Y Splitter Cable for Servo

• 1 x Voltage Test Cable

• 1 x User Manual
