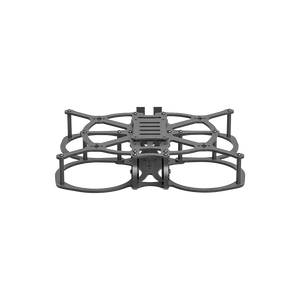

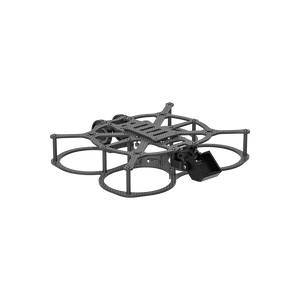

AOS Cine25 V5 Frame Kit

The AOS Cine25 V5 strikes the perfect balance between compact size and enhanced flight performance, supporting up to 2.5" props.

SPECIFICATIONS

• Product Name: AOS Cine25 V5 Frame Kit
• Frame wheelbase: 120mm
• Frame Dimension: L171xW147xH34 mm
• Top Plate Thickness: 2mm
• Bottom Plate Thickness: 1.5mm
• Battery Plate Thickness: 1.5mm
• Max Flight Stack Height: 25mm
• Max VTX Height: 25mm
• Flight Stack Mounting: 20x20 Φ2mm / 25.5x25.5/Φ2mm
• VTX Mounting: 20x20 Φ2mm / 25.5x25.5 Φ2mm
• Motor Mounting: 9x9mm - Φ2mm
• Weight: 88g
• Compatibility: DJI O4 Air Unit Pro/DJI O3 Air Unit/HD Vista/BLITZ Whoop 1.6W VTX


PACKING LIST

• 1 x AOS Cine25 V5 Frame Kit
• 1 x TPU Parts
• 1 x Screw Bag
• 2 x Battery Strap
• 2 x Anti-slip Battery Pad
