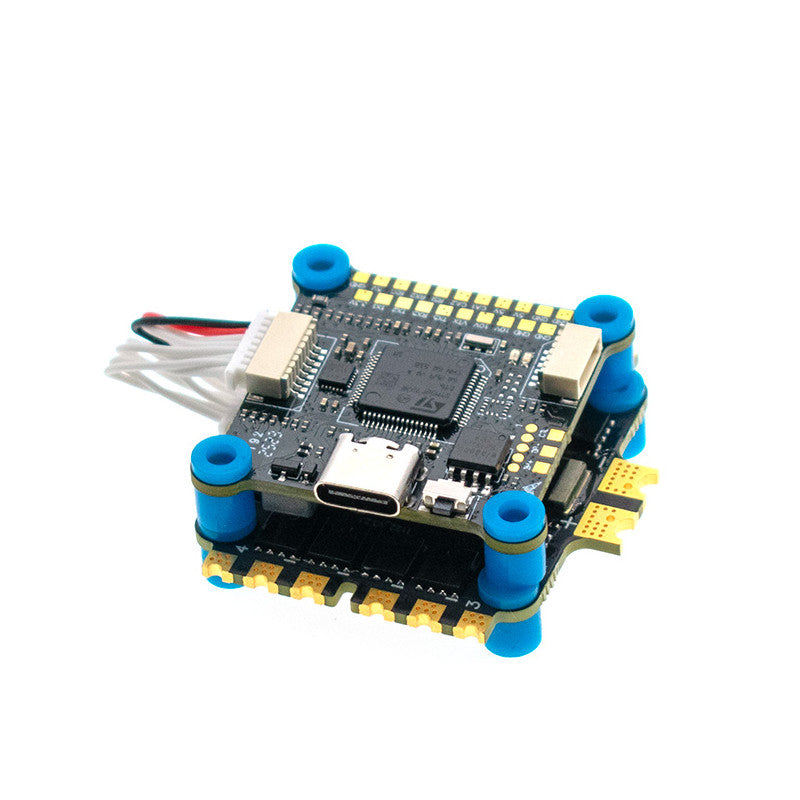

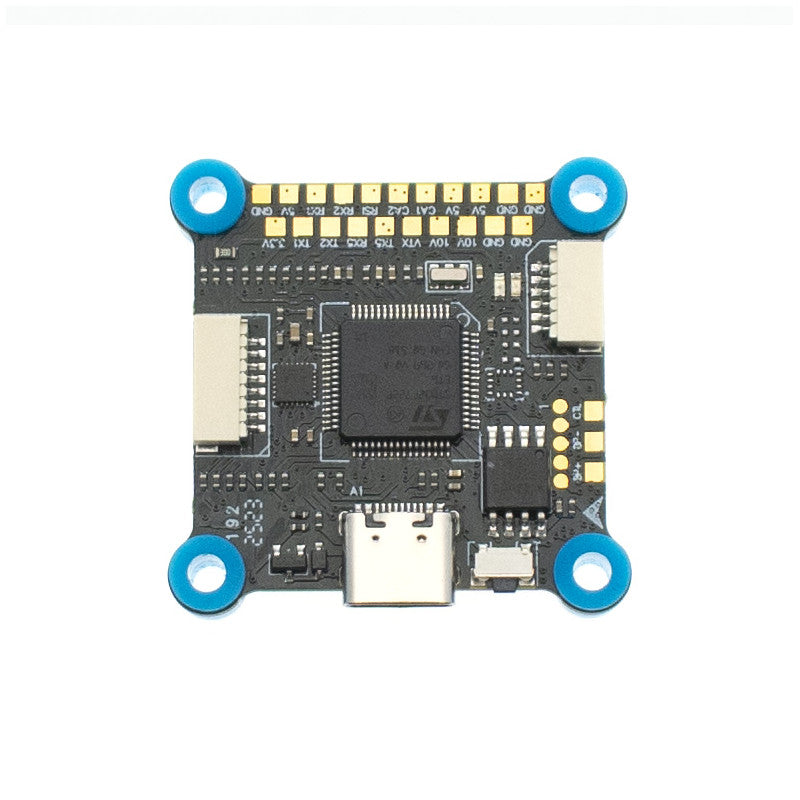

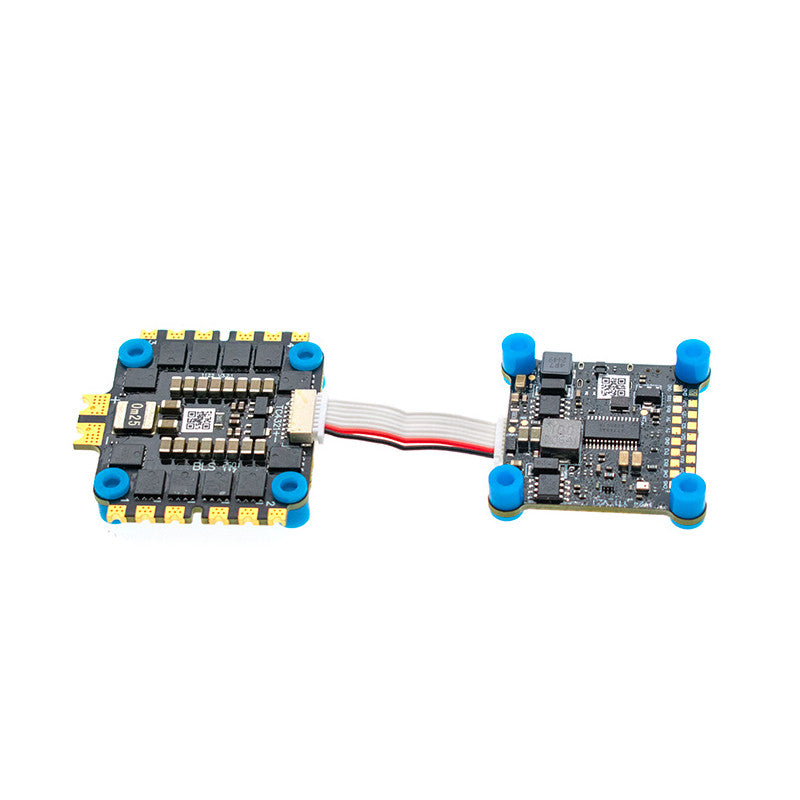

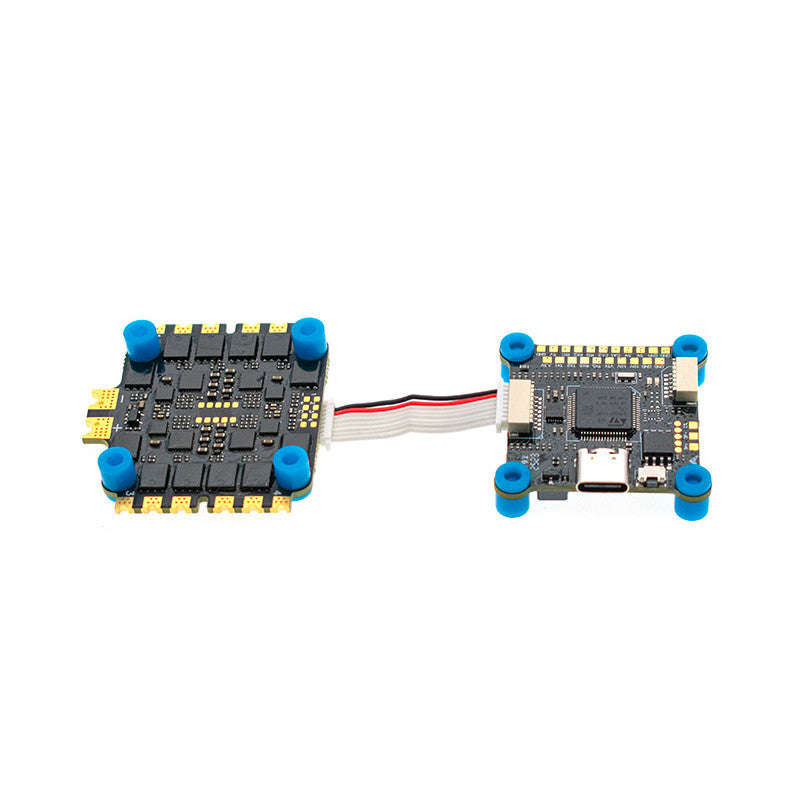

Hobbywing’s entry-level stack: the XRotor Lite. It includes an F722 flight controller equipped with an MPU6500 gyro, a DPS310 barometer, 6 UART ports, and a 5V 1.5A BEC.

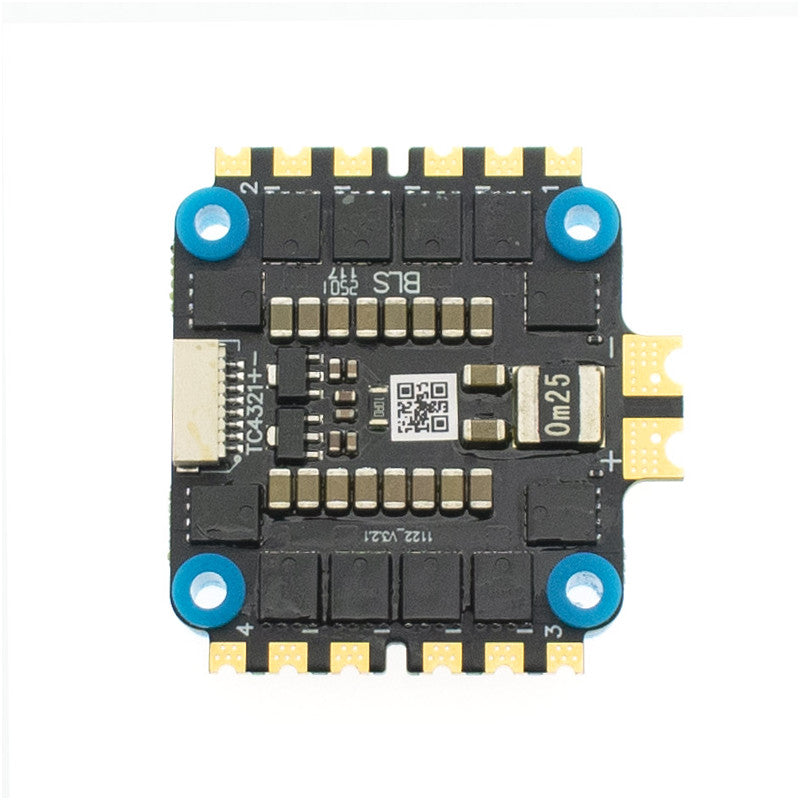

The 4-in-1 ESC runs on BLHeli_S firmware and supports a continuous current of 65A.
This stack uses a 30.5×30.5 mm mounting pattern and weighs less than 25 g.
To remain as cost-effective as possible, the stack does not include an XT60 connector or any mounting hardware.
Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.
Specifications
- Main chip: F722
- Original target: HOBBYWING_XROTORF7CON(STM32F7X2)4.3.2
- Gyro: MPU6500
- Barometer: DPS310

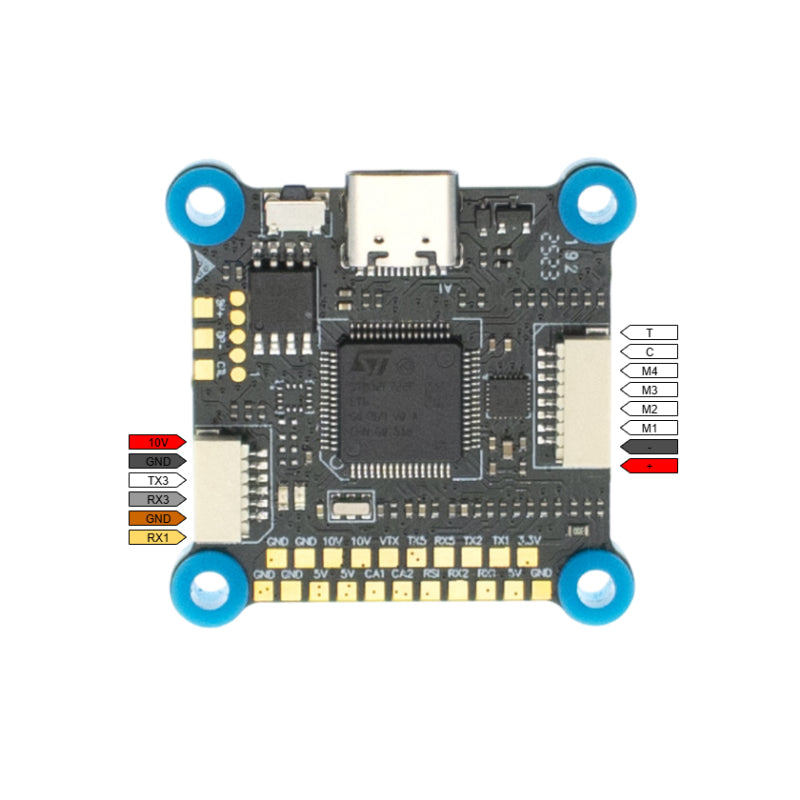

- UARTs: 6 sets
- Analog OSD chip: Yes
- BEC: 5V @ 1.5A
- HD VTX port: Yes with 10V power supply
- UART 1: HD port RX radio
- FC voltage: 8S
- ESC voltage: 3-6S
- Current: 65A X4
- ESC Firmware: BLHeli_S
- Mounting holes : 30.5*30.5mm
- FC Dimensions: 49*49*8mm
- ESC dimensions: 52*42*6.6mm
- FC weight: 9.1g
- ESC weight: 15.5g

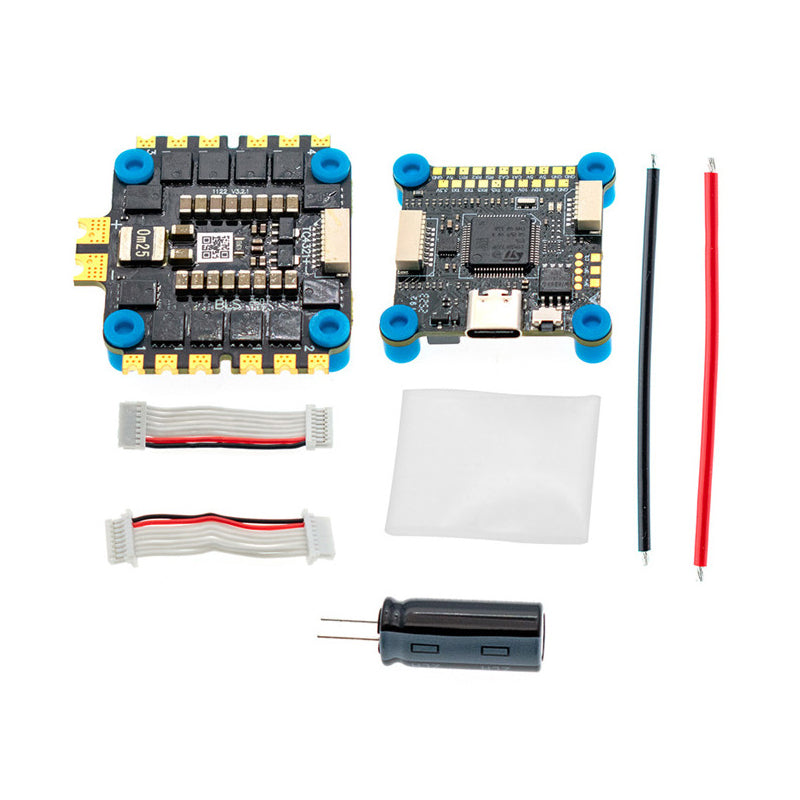

Package Contents
- 1x F722 Flight Controller
- 1x 4-in-1 65A ESC
- 2x 12 AWG Cable
- 1x 35V 680uF Capacitor
- 2x 8-pin Cable
