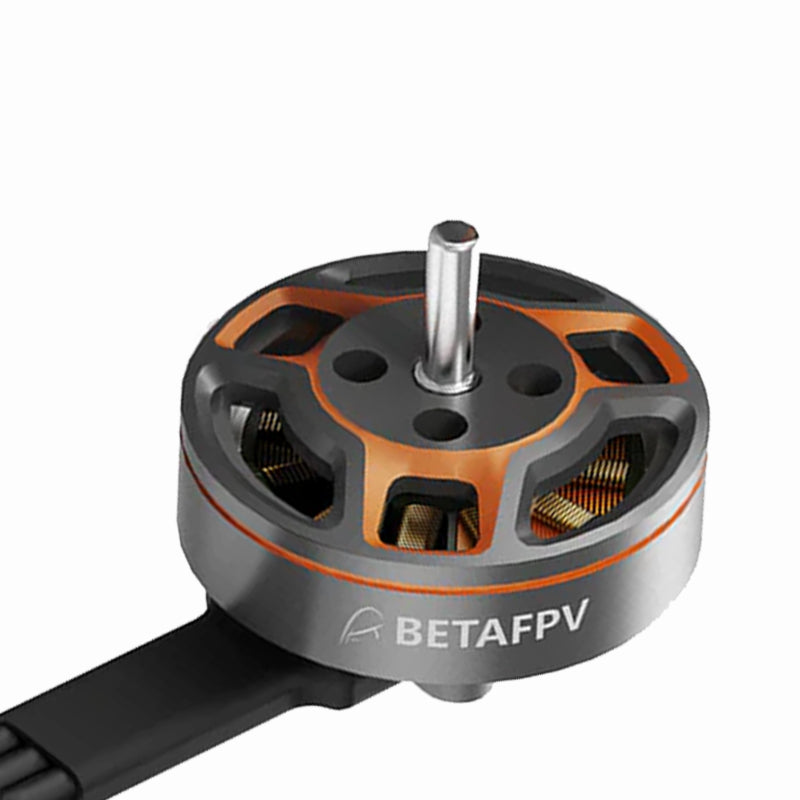

Replacement motor for PAVO FEMTO
Specifications

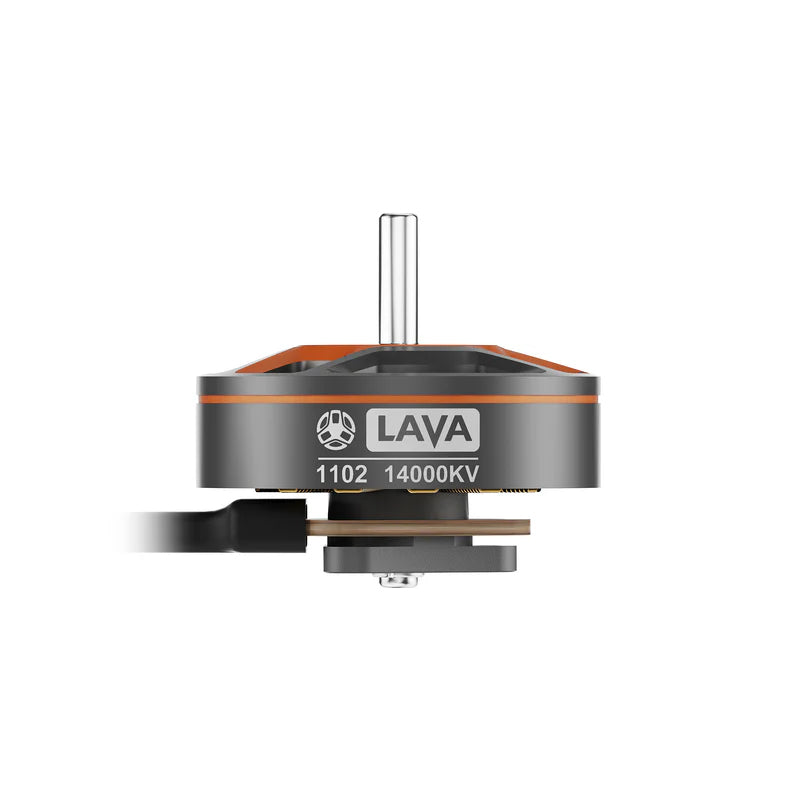

- Item: LAVA Series 1102 Brushless Motor
- KV: 14000KV
- Maximum power: 84.1W
- Maximum current: 10.51A
- Rated voltage: 2S

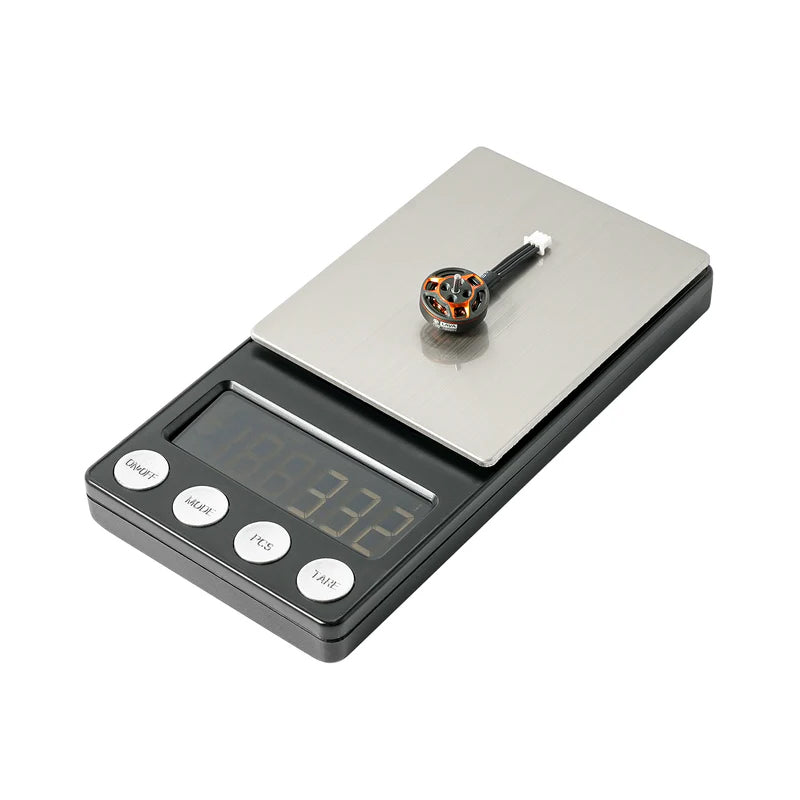

- Weight: 3.4 (±0.1)g

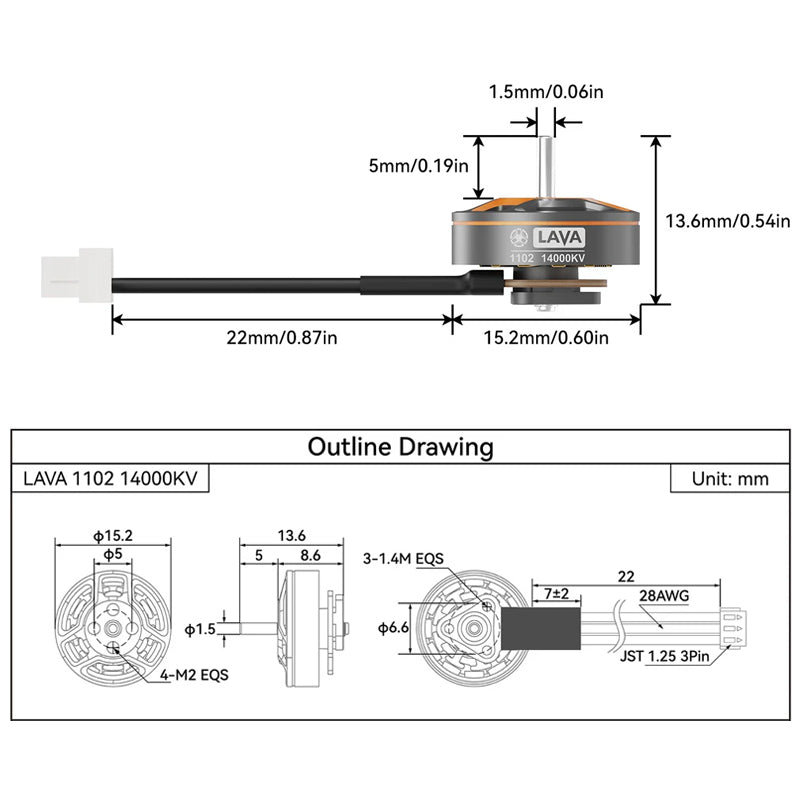

- Shaft diameter: ø1.5mm
- Shaft length: 5mm
- Wire gauge: 28AWG
- Wire length: 22mm
- Connector: JST1.25-3Pin
- Motor mounting hole size: 3*M1.4 EQS ø6.6
- Propeller mounting hole size: 4*M2 EQS ø5

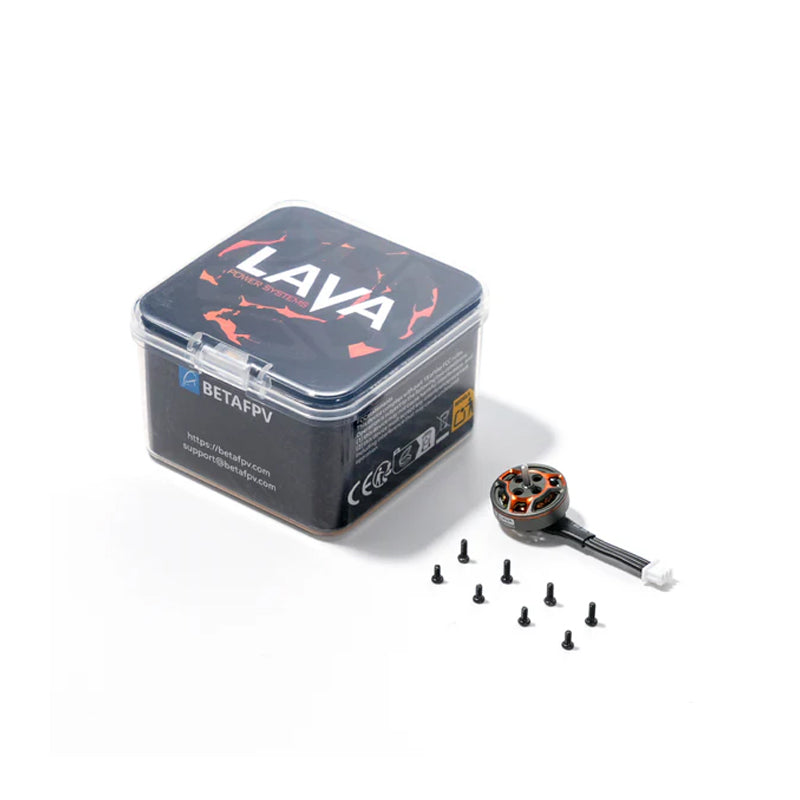

Package
- 1 * LAVA Series 1102/14000KV Brushless Motor
- 4 * M1.4 * 3 Phillips Flat Head Screws
-
4 * M1.4 * 4 Phillips Flat Head Screws
