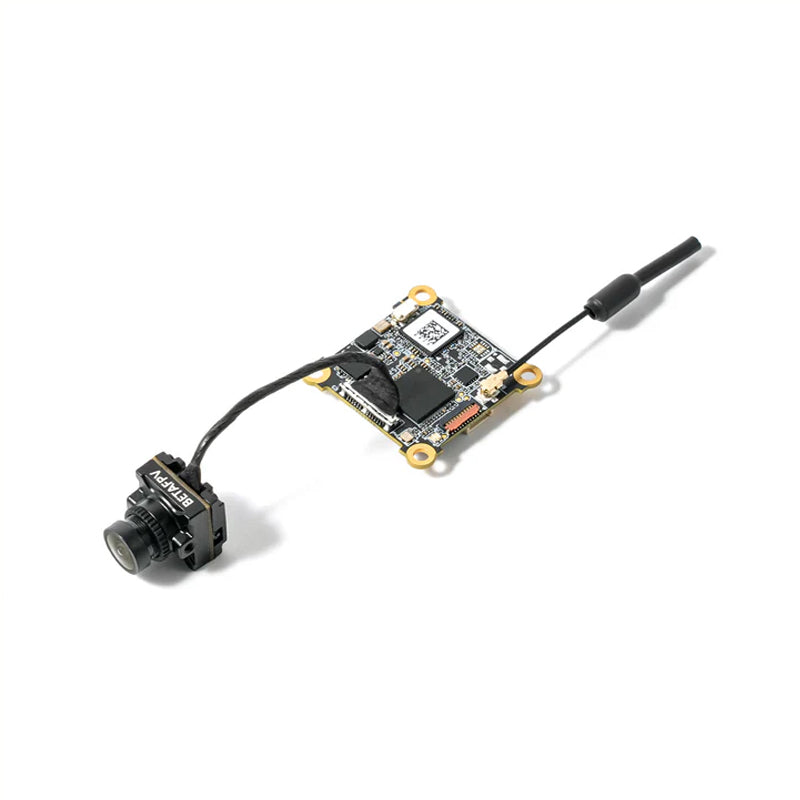

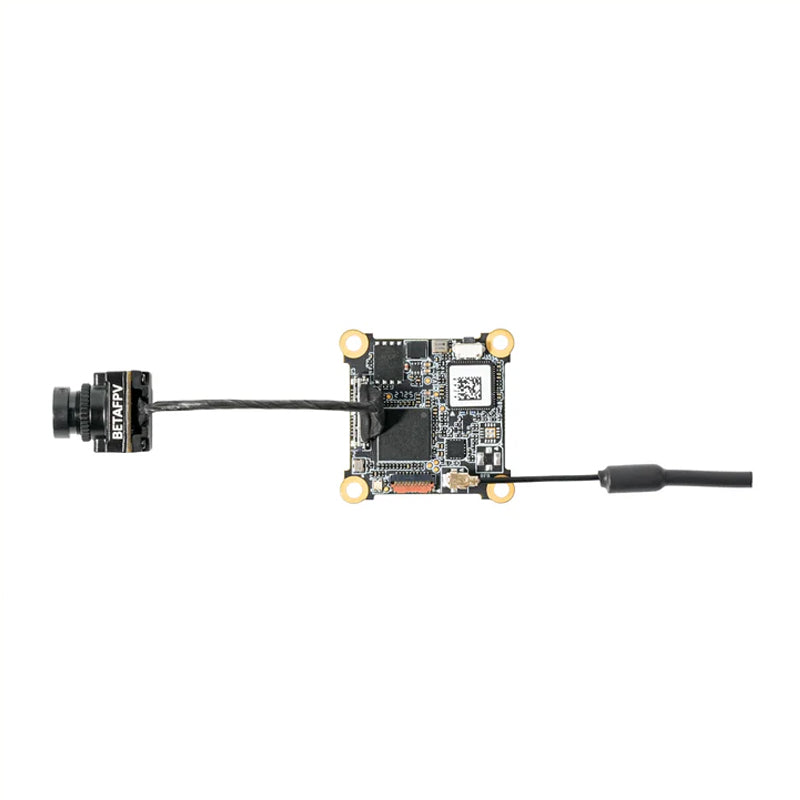

The P1 Air Unit HD VTX, part of the ArtLynk protocol ecosystem, delivers a stunning 1080p@60fps live feed with approximately 60ms latency and an impressive transmission range of over 5km. Its 1/2.9” CMOS sensor and wide 170° field of view provide an incredibly immersive and detailed perspective, making every flight intuitive and responsive. Designed for reliability in diverse conditions, the system maintains a stable, interference-resistant connection—whether weaving through dense forests or navigating complex urban environments.
Specifications
|
VTX |
|
|
Frequency |
5.1-5.9 GHz |
|
Effective lsotropic Radiated Power (EIRP) |
＜200mW (FCC/SRRC)
<25mW (CE)
|
|
Video Transmission Range |
>5km
|
|
Video Transmission Latency |
Approx. 60ms |
|
Live View Quality |
1080p@60fps |
|
Bandwidth |
10MHz |
|
Antenna |
Single antenna |
|
Channels |
3 |
|
Camera |
|
|
Mounting Width |
14mm |
|
Mounting Hole |
M2 |
|
Image Sensor |
1/2.9'' CMOS |
|
Lens |
Field of View (FOV): 170° |
|
Video Format |
MP4 |
|
Max Video Transmission Bitrate |
20Mbps |
|
OSD |
Canvas mode |
|
Firmware |
|
|
Input Voltage |
5V |
|
Operating Temperature |
-10℃ to 40℃ |
|
Compatibility |
|
|
Supported FC |
Betaflight FC & BETAFPV FC |

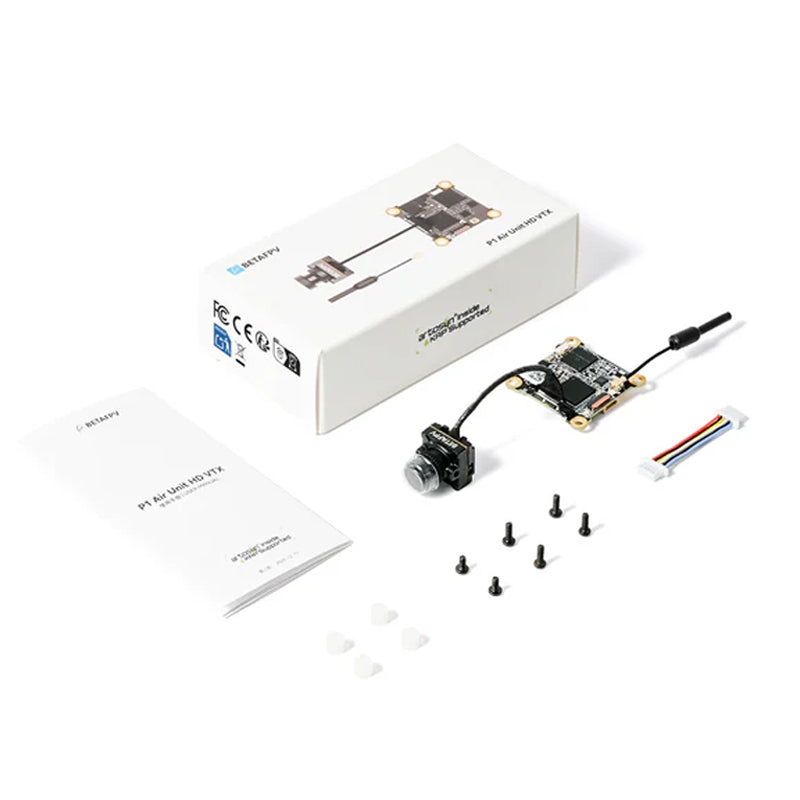

Package
- 1 * P1 Air Unit HD VTX
- 1 * 6Pin Cable
- 1 * Accessories Package (4*Shock-absorbing Balls, 2*M2-4 Screws, 4*M2-6 Screws)
- 1 * User Manual
