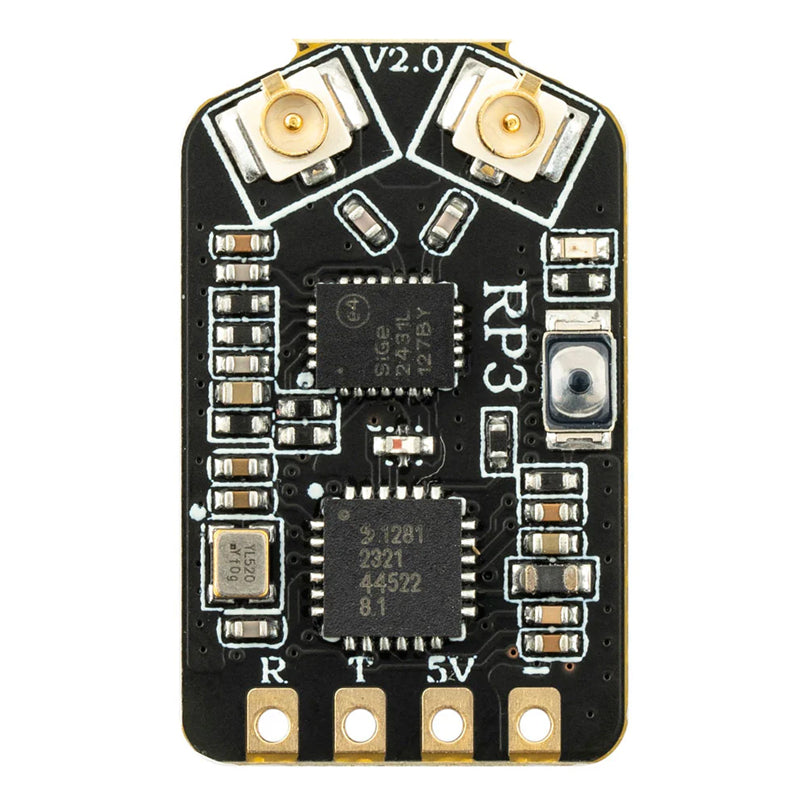

ELRS 2.4G RP3 V2 Nano Receiver By RadioMaster

Specification

• Type: ISM
• MCU: ESP8285
• RF Chip: SX1280IMLTRT
• Telemetry RF power: max 100mw

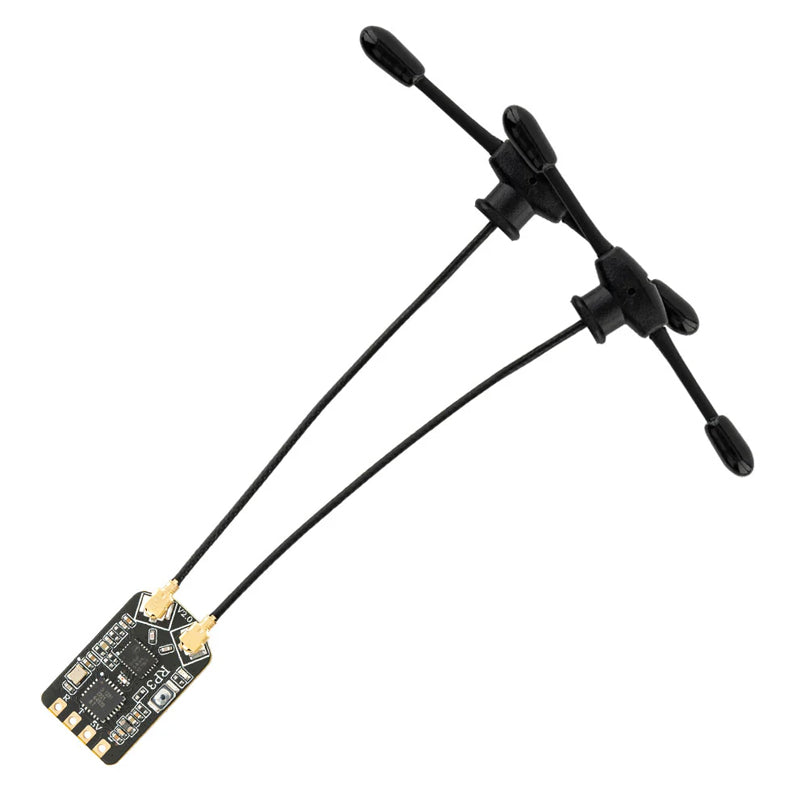

• Antenna: 65mm 2.4ghz T Antenna x 2
• Frequency Range: 2400 MHz to 2480 MHz
• Maximum receive refresh rate: 500Hz / F1000Hz
• Minimum receiver refresh rate: 25Hz
• Working voltage: 5v
• Weight: 4.6g (Including two antenna)
• Dimension: 22mm*13mm*4mm
• Firmware Version: ExpressLRS v3.0 EU-LBT pre-installed
• FW Target: RadioMaster RP3 Diversity 2400 RX
• Bus interface: CRSF

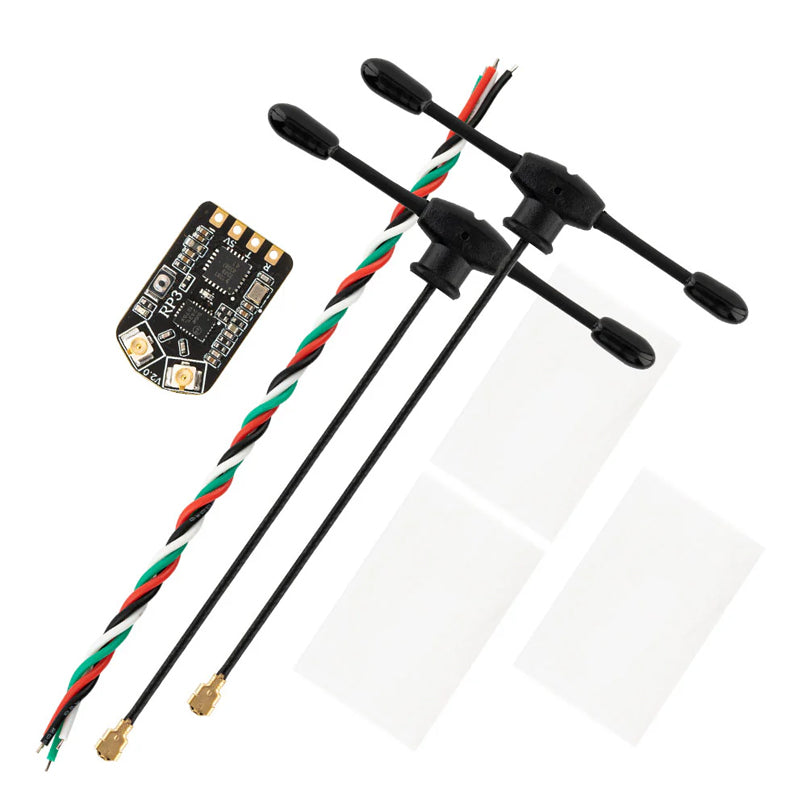

Package

• 1x RP3 ExpressLRS 2.4ghz Nano Receiver
• 2x 65mm UFL 2.4Ghz T Antenna
• 1x User Manual
