Bullet Points
- XH geometry
- Ideal for installing a GoPro
- Aluminum alloy head
- Analog VTX, DJI O3 and DJI O4 PRO compatible
- Selectable dual feed to adjust center of gravity
-
Specifications
- Wheelbase : 226mm
- Weight (3D Printed Parts Excluded) : 126 ±5g
- Weight (3D Printed Parts and Injection) : 167±5g
- Top Plate Thickness : 2.5mm (T300 3K)
- Middle Plate Thickness : 2.0mm (T300 3K)
- Bottom Plate Thickness : 2.5mm (T300 3K)
- Arm Thickness : 6mm (T300 3K)
- Camera Mounting Screw : 7mm
- 3D Printed Parts : Yellow TPU
- Battery Anti-Slip Pad : Silicone 3mm
- Motor Spring Hole Position : Φ8mm
- Compatible Propeller Size : Max 5.1 Inch
- Motor Mounting Hole Distance : 16-19mm
- FC Mounting Hole : 30.5x30.5(M3)
- VTX Mounting Hole : 20x20(M2) / 25.5x25.5(M2)
- Head Material : Aviation Aluminum Alloy
- Aluminum Column Material : 7075 D5*23mm/D46*22mm
- Internal Mounting Height : 23-31mm
- Receiver Installation Space : 25*13*6mm
- Suitable Capacitor Size : Φ10mm*20mm
- GPS Installation Size : 18*18*7
- Camera Compatibility : 19mm/20
-
Package Contents

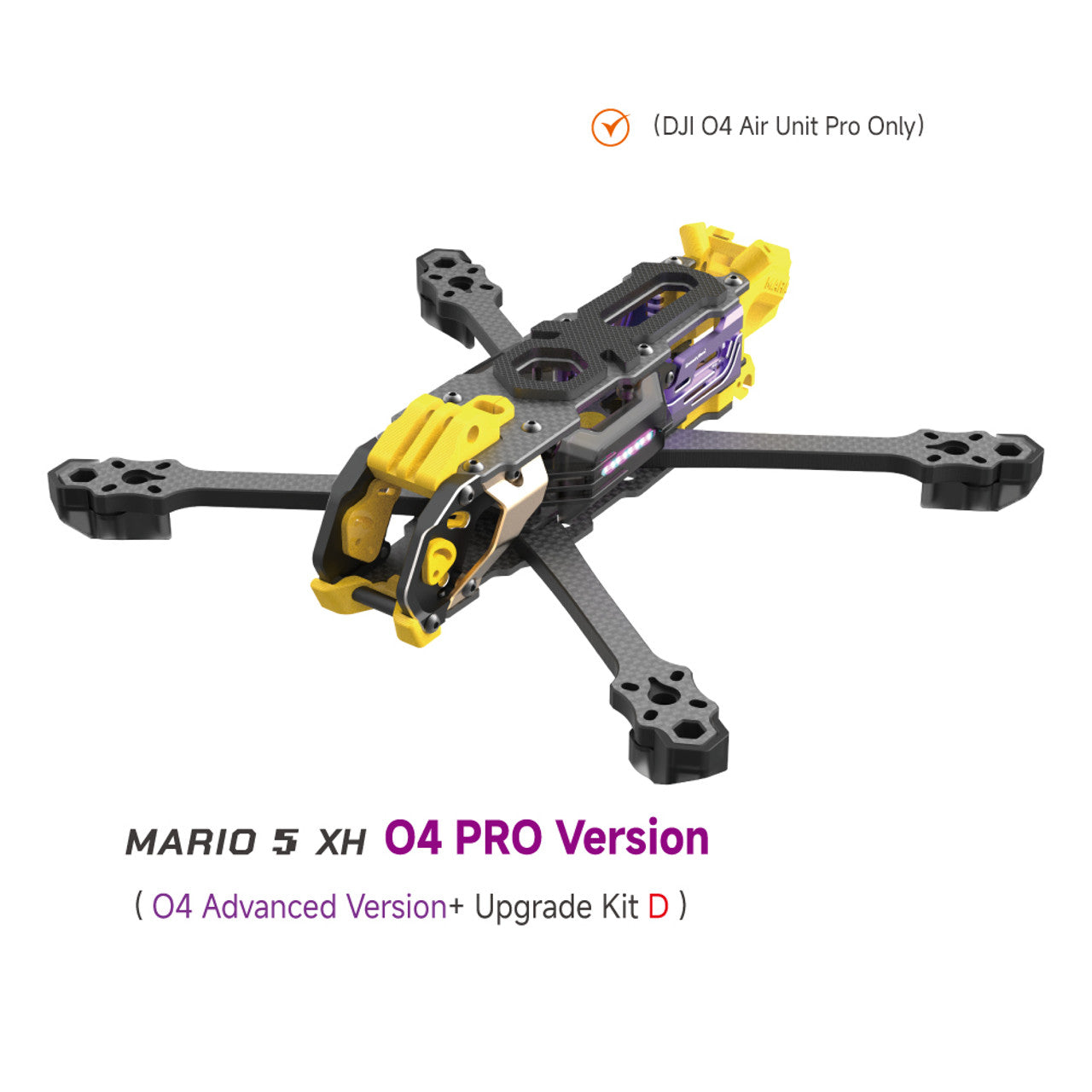

- 1x Mario 5 frame
- 1x Set of TPU parts
- 1x Hardware set
- 1x SMA / UFL antenna pigtail
